The mattress border is the quiet bottleneck of the upholstery shop. Before the border strip can be sewn to the mattress, the fabric must be marked with stitching guide lines, punched with ventilation holes, measured to the exact perimeter of the mattress, and spliced end to end so the border sewing machine never runs out of material. In most factories that work is done by hand: two workers with rulers and chalk, a manual hole punch, and a measuring tape, feeding one sewing line at a pace that shifts with every order change. The IF-C1 Automatic Marking And Splicing Machine performs line drawing, hole punching, length measurement, and splicing in one closed-loop digital pass at 6 to 10 meters per minute with a single operator, and it links to the factory MES system to arrange border orders by size automatically. A mattress of 2000 by 1800 millimeters needs about 7.6 meters of border fabric plus seam allowance, so a one-meter-per-second border cell keeps three sewing machines busy, which is why the IF-C1 is the first upgrade a mattress factory makes when the border bench becomes the pace-setter of the upholstery line.
The border is the second most labor-intensive component of a spring mattress, after the quilting panel, and it is also the most error-prone, because every measurement is done by hand against a moving fabric roll. A typical border station keeps three workers on the floor: one marking guide lines with a ruler and chalk, one punching ventilation holes, and one measuring and splicing the strips that feed the border sewing machine. At a factory wage of roughly $450 per worker per month including social costs, the station costs about $1,350 per month in direct labor, and the number grows on overtime when upholstery orders spike. The IF-C1 Automatic Marking And Splicing Machine replaces the whole bench: the operator loads the fabric roll, selects the order on the panel, and the machine draws the guide lines, punches the holes, measures the length, and splices the strips at 6 to 10 meters per minute.
The cost of a hand-made border is not just the payroll. A border strip measured 5 centimeters short is either spliced with an ugly patch or scrapped entirely, and a strip measured 5 centimeters long piles up as waste at the sewing station. The assembly line absorbs the damage silently: the border is cut and recut, the sewing machine waits, and the mattress leaves the line with a border that is not square to the panel. With the IF-C1, the length is measured digitally against the order list and the splice is made by the machine, so every strip that leaves the cell matches its order and every mattress gets a border that fits its exact perimeter.
The third saving is scheduling. A multi-model factory runs borders of many lengths in one shift, and a manual bench spends part of every hour stopping while the crew re-measures and re-marks the next size. The IF-C1 holds the order list in its control system, arranges the marking and punching programs by size automatically, and switches between mattress models without stopping the fabric feed, so changeover time disappears from the work day. Factories that feed the cell from the MES order queue typically report that one IF-C1 cell keeps three border sewing machines fed on a single shift.
The quality story closes the commercial case. Digital line drawing places the guide lines to a fixed tolerance, the punch spacing is uniform because it is program-driven, and the splice joint is clean and consistent, so the finished border looks machine-made from end to end. Consistent borders mean fewer rework strips, fewer complaints from the assembly line, and a better mattress silhouette, which is why the IF-C1 is usually the first investment an upholstery department makes when the border bench starts delaying the sewing floor.
The IF-C1 cell is a single pass with a single operator. The fabric roll loads on the infeed side, the operator selects the order, and the machine feeds the border fabric through four closed-loop stations: digital line drawing marks the stitching guide, the punch head places the ventilation holes at the programmed spacing, the measuring system checks the length against the order list, and the splicer joins the end of one strip to the start of the next so the output roll never runs dry. The complete pass runs at 6 to 10 meters per minute, and the operator's only job is to keep the infeed roll loaded and to move the finished output roll to the border sewing station.
The closed-loop control is what makes the machine dependable. Sensors verify the position of every drawn line, the spacing of every punch, and the length of every strip as it passes, and any deviation is corrected inside the same pass instead of being discovered at the sewing machine. The splice joint is monitored the same way, so a weak splice is flagged before it reaches the border seam, and the panel records the result of every order for the factory quality log.
The cell fits into the wider upholstery flow. Border strips from the IF-C1 feed the border sewing machines that attach the strip to the quilted panel, and the same output feeds the downstream finishing steps such as the IF-4BF Automatic Four-Side Hemming Machine, which hems the finished border edges, and the IF-EB Mattress Embroidery Machine, which adds the decorative stitching that retail buyers expect on premium borders. One IF-C1 feeding station, three machines downstream, and the whole upholstery line runs on the same digital order list.
The IF-C1 is a compact, self-contained machine that needs a clean, level bay and a modest power supply. The table below summarizes the technical data, all of which is engineered for continuous factory duty with digital closed-loop control.
Installation takes about two days in an operating factory. The machine needs a bay of roughly 15 square meters including the fabric infeed rack, the machine envelope, and the output roller rack, with a power supply capable of the 6.5-kilowatt draw. The MES link is a simple network connection to the factory order system, configured by Infinity engineers during commissioning, who also train the operators and load the customer's first border order list before handover.
A complete border cell deploys one IF-C1 with the fabric infeed rack, the output roller rack, and the MES link. The equipment CAPEX for the cell, including delivery, installation, commissioning, and operator training, typically lands in the range of $8,800 to $11,500 depending on regional freight, accessories, and the MES integration scope. The projection below models a factory running one border cell on a single shift of 22 working days per month, replacing the manual three-person border bench.

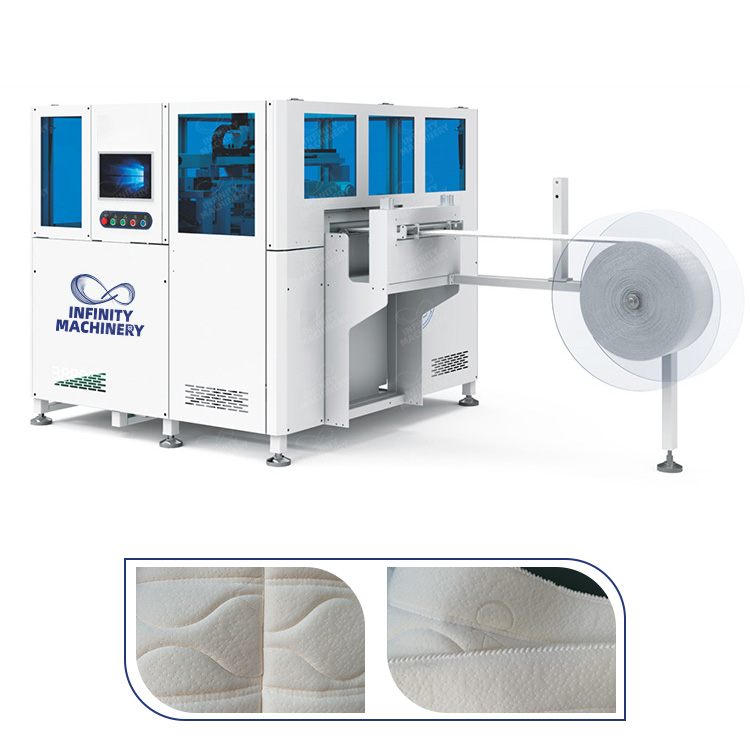

IF-C1 Automatic Marking And Splicing Machine: production capacity of 6 to 10 meters per minute, sewing width of 120 to 400 mm with sewing thickness up to 25 mm, total power of 6.5 kW, digital line drawing with closed-loop position control, automatic hole punching with programmable spacing, digital length measurement matched to the order list, automatic end-to-end splicing with splice monitoring, MES-ready control with intelligent order arrangement, compact footprint of roughly 15 square meters of bay space, CE-compliant components, and compatible with the IF-4BF four-side hemming machine and the IF-EB embroidery machine in the same upholstery flow.
The projection is deliberately conservative. It assumes no overtime premium, no credit for the second shift that the cell makes possible, and no benefit from the reduced rework that digital measurement produces. Factories that run the cell on two shifts or link it to the MES order queue typically report payback inside eight months, and the cell continues to run with a one-person crew instead of three, which means the saving compounds every month the factory operates.
The border bench is the most manual step in the upholstery flow, and it is the easiest to automate. The IF-C1 draws, punches, measures, and splices the border fabric at 6 to 10 meters per minute with one operator, links the cell to the MES order queue, and feeds three border sewing machines on a single shift. Digital measurement kills the short-cut and the long-cut, program-driven punching makes the ventilation holes uniform, and the machine-made splice ends the patchwork that manual benches leave behind.
The decision rule is simple: if the factory still marks and splices borders by hand with more than two workers per shift, or if the border bench has become the pace-setter that stalls the sewing floor, the IF-C1 is the highest-return investment available in the upholstery department, with a sub-ten-month payback and zero compromise on border quality. Install one cell, measure the labor and rework numbers for one quarter, and let the savings justify the second cell before the next order wave reaches the sewing floor.
Contact our machinery engineers today for a custom border cell layout, MES integration design for your factory order system, a sample test with your own border fabrics, and a factory-direct quotation for your mattress plant.
